5200 ENFORCER

5200 ENFORCER FEATURES

Fast & Aggressive – The 5200 ENFORCER expands on the capabilities of its predecessor, the I-5100, in tough field conditions. The ENFORCER is engineered to level and uniformly mix soil and residue between 3” and 5”. The redesigned blade layout increases the stability of the machine.

EVEN MORE CLEARANCE

The patent pending rubber suspension blade mount has been completely redesigned to create even more clearance between the four rows of concave blades. The four rows of blades on a deep frame give the 5200 ENFORCER much more clearance than compact, high speed discs.

COMPOUND BLADE ANGLE

The 5200’s patent pending rubber suspension blade mounts hold the blade on two angles; the first three rows are open faced similar to position the blade similar to the angled gang on a tandem disc.
The blades are also tipped under to create suction that holds the 5200 in the ground when going through hard soil.

FOUR ROWS OF BLADES, TWICE THE WORK

Four rows of concave blades replicate two passes with a tandem disc. The result is a superior residue blend and field finish in one pass that is often ready as a stale seedbed in the spring.

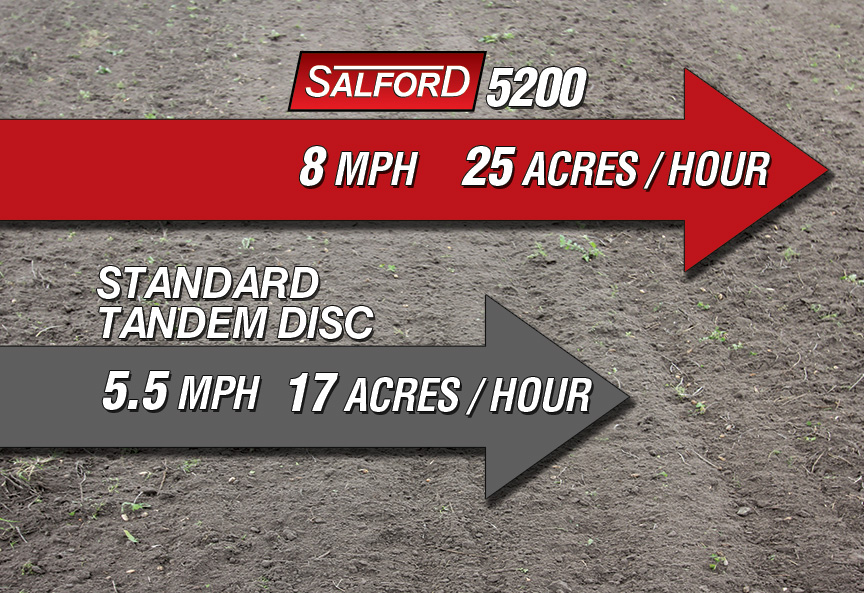

HIGH SPEED OPERATION

VIDEO

OPTIONAL: FLEXFINSIH HYDRAULICALLY ADJUSTABLE TINE HARROW AND ROLLING BASKET

HARROWS

Finishing Package

Finishing Package Consist of:

Heavy Duty 3 bar 1/2” tines

1/2” dia. tine, strength for exceptional leveling
3 ranks with 20” clearance
No tool pitch adjustment

Heavy Duty 14” Rolling Harrow

Adjustable down pressure
Triple seal 1.5” bearing resists rock damage, even at high speed
Flex Finish Hydraulically Adjustable Rolling Harrow (Optional)

STANDARD FEATURES

Coulters and Mounts

22” dia x 5 mm shallow concave discs (rubber mount)
2 guide coulter 25’ x ¼’ (6.5 mm) flat smooth blade
1 center coulter with 22’ x 8 wave blade
Boron steel blades
5” of vertical travel

Frame

Heavy Duty 4” x 6” tubing
Hydraulic level lift
Hydraulic single-point depth control
Heat treated cast clevis hitch
Operator convenience center
Welded main frame with capped tube ends

Tires—Mainframe

12’ – 16’ Dual wheels
19’ Dual wheels on main, single wheels on wings
22’ – 29’ Dual wheels on main frame and wings
36’ – 39’ Tandem wheels on main frame, dual on wings
Single fixed guage wheels on models 19’ – 39’ per wing
12’ – 16’ 8 bolt 12.5L x “F”
19’ – 29’ 8 bolt 305/70 x 22.5 Recapped Truck Tire
36’ – 39‘ 10 bolt 425/65R x 22.5, Recapped Truck Tire

Tires—Wings

19’ – 29’ All Wings
11L x 15 6 bolt load range “D”
36’ – 39’ All Wings
8 bolt 12.5L x 15 “F”

OPTIONAL EQUIPMENT

Adjustable tow hitch (one-man connection)
Hydraulic lines and quick coupler to tow hitch
24″ Blades
Tire scrapers

SPECIFICATIONS

5200 Enforcer

Configuration
Specifications

Model Size
Working Width
# of Concave Blades*
Transport Height
Transport Width
Approx. weight with Standard Harrows

12′ (3.66 m)
12’1″ (3.68 m)
28
No Wings
13’10” (4.22 m)
11,100 lbs (5.04 T)

16′ (4.88 m)* *
15’5″ (4.70 m)
36
9′ (2.74 m)
11’6″ (3.51 m)
15,600 lbs (7.08 T)

19′ (5.79 m)
18’9″ (5.72 m)
44
10’3″ (3.12 m)
15’2″ (4.62 m)
20,700 lbs (9.39 T)

22′ (6.71 m)
22’1″ (6.73 m)
52
12’4″ (3.76 m)
15’2″ (4.62 m)
22,800 lbs (10.34 T)

25′ (7.62 m)
25’5″ (7.75 m)
60
13’5″ (4.09 m)
15’2″ (4.62 m)
24,000 lbs (10.89 T)

29′ (8.84 m)
28’9″ (8.76 m)
68
14’7″ (4.48 m)
15’2″ (4.62 m)
27,900 lbs (12.66 T)

36′ (10.97 m)
35’5″ (10.80 m)
84
14’6″(4.45m)
20’6″ (6.25)
37,000 lbs (16.78 T)

39′ (11.89 m)
38’9″ (11.81 m)
92
15’11” (4.85 m)
20’6″ (6.25 m)
38,200 lbs (17.24 T)

5200 Enforcer requires 15 – 20 horse power per foot. Power required varies by ground conditions, operating depth and speed.

* Blade count does not include 2 or 4 guide coulters per machine. Guide coulters vary by machine size.

* * 16′ 3-pc Flat Fold

5200 Enforcer
Configuration	Specifications
Model Size	Working Width	# of Concave Blades*	Transport Height	Transport Width	Approx. weight with Standard Harrows
12′ (3.66 m)	12’1″ (3.68 m)	28	No Wings	13’10” (4.22 m)	11,100 lbs (5.04 T)
16′ (4.88 m)* *	15’5″ (4.70 m)	36	9′ (2.74 m)	11’6″ (3.51 m)	15,600 lbs (7.08 T)
19′ (5.79 m)	18’9″ (5.72 m)	44	10’3″ (3.12 m)	15’2″ (4.62 m)	20,700 lbs (9.39 T)
22′ (6.71 m)	22’1″ (6.73 m)	52	12’4″ (3.76 m)	15’2″ (4.62 m)	22,800 lbs (10.34 T)
25′ (7.62 m)	25’5″ (7.75 m)	60	13’5″ (4.09 m)	15’2″ (4.62 m)	24,000 lbs (10.89 T)
29′ (8.84 m)	28’9″ (8.76 m)	68	14’7″ (4.48 m)	15’2″ (4.62 m)	27,900 lbs (12.66 T)
36′ (10.97 m)	35’5″ (10.80 m)	84	14’6″(4.45m)	20’6″ (6.25)	37,000 lbs (16.78 T)
39′ (11.89 m)	38’9″ (11.81 m)	92	15’11” (4.85 m)	20’6″ (6.25 m)	38,200 lbs (17.24 T)
5200 Enforcer requires 15 – 20 horse power per foot. Power required varies by ground conditions, operating depth and speed. * Blade count does not include 2 or 4 guide coulters per machine. Guide coulters vary by machine size. * * 16′ 3-pc Flat Fold
